Henderson Premier Cones & Cables
Henderson Premier Cones & Cables

Henderson Premier Cones & Cables

Part Number:WS033
Product Reviews:

Availability:

In Stock
£15.00 (£12.50 Ex VAT)
Unit Quantity: Pair
Description

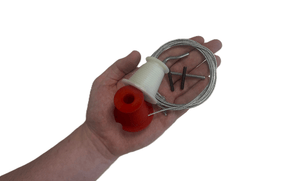

A pair of cones and cables to suit Henderson premier canopy garage doors, manufactured 1992 onwards. Cables have a stop end on the end of the cable. Includes 2 roll pins & 1 tension pin.

  • Manufactured from 1992
  • Cables have a stop end (metal stud)
  • Henderson part no: 032000
  • Compatible part: Cost saving alternative

Note: Colour of cones may differ from originals. Cones are handed left and right as marked on the cone.
Fitting Instructions

Click the PDF icon to open the printable fitting instructions for Henderson Premier Cones & Cables.

Henderson Premier Cones and Cables

HENDERSON PREMIER CONES & CABLES

  1. Using toggle bar or screwdriver in plug A, rotate shaft to ease spring pressure.
  2. Insert crook pin into right hand head bracket (1) and secure door within openings.
  3. Remove side jamb channels (2) and head bracket bolts (3).
  4. Remove door arms (4) from head bracket and door by withdrawing split pins (5).
  5. Detach free crimped end of cable (6.) from roller spindle clip (8).
  6. Remove and discard cables and cones by driving hollow pin (7) from cone and shaft, using a hammer.
  7. Replace cones ensuring that white cone is on the left hand side and black cone on the right hand side.
  8. Ensure that cones are correctly fitted by checking that cable fixing points on cones are aligned with each other.
  9. Fix cones using new hollow pins and hammer.
  10. Refit the spring assembly and head brackets then replace door arm jamb channels by reassembling in reverse order.
  11. Refit new cable by clipping into cone and roller spindle clips (8).
  12. Ease spring pressure using toggle bar and remove crook pin.
  13. Allow spring to take up slack, ensuring that cables are in the outer groove, run down behind the cone and that roller spindle clips (8) are in position, as shown.
Specification
Cable Length 1397 mm
Cable Diameter 1.5 mm
