Garador G3 cables

Garador/Hormann Current C-type G3 Cables

Part Number:WS024-1
Product Reviews:

Availability:

In Stock
£13.20 (£11.00 Ex VAT)
Unit Quantity: Pair
Description

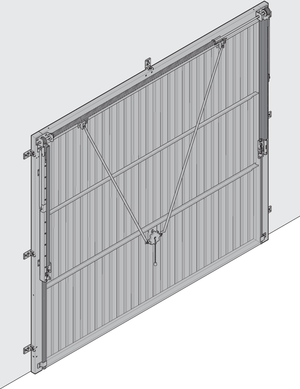

A pair of high quality, replacement cables to suit current Hormann and current Garador canopy garage doors (2002 - present). These doors have a single spring running along the top of the door, with a cast 'drum' on either end, onto which the cable is attached.

  • The cables have a stop (metal stud) on each end.
  • Cable length: 1397mm (55")
  • Garador current part no: 45
  • Garador old part no: 1877015
Fitting Instructions

Click the PDF icon to open the printable fitting instructions for Garador/Hormann Current C-type G3 Cables.

G3 cables



SAFETY NOTES:
The spring is under tension. Please follow instructions carefully to avoid injury.

Wear protective gloves and eye protection. Two persons may be required for this operation.

Important:
BOTH cables must be replaced as the spare cables may be a different length to the originals. If only the broken cable is replaced the door may not operate correctly.


STEP 1
Tighten the two grub screws in the left hand side spring casing.

STEP 2
Thread the end of the cable into the slot of the roller bracket assembly.

STEP 3
- Undo the two grub screws in the cable drum, slide the cable drum towards the centre of the door.
- The cable can now be inserted into the fixing slot.
- Rotate the drum so that the cable winds onto the rear of the drum.
- Ensure the cable runs down the inside of the track.
- When the cable is taut, slide the drum to the outside and tighten both grub screws.
- Repeat for opposite side.

STEP 4
Undo the two grub screws that were tightened in step 1.

Specification
Cable Length 1397 mm
Cable Diameter 2 mm
