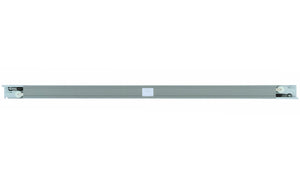

Garador Mk3c Garage Door Spring Box
Garador Mk3c Garage Door Spring Box
Garador Mk3c Garage Door Spring Box
Garador Mk3c Garage Door Spring Box
Garador Mk3c Garage Door Spring Box
Garador Mk3c Garage Door Spring Box
Garador Mk3c Garage Door Spring Box
Garador Mk3c Garage Door Spring Box
Garador Mk3c Garage Door Spring Box
Garador Mk3c Garage Door Spring Box
Garador Mk3c Garage Door Spring Box
Garador Mk3c Garage Door Spring Box

Garador Mk3c Garage Door Spring Box

Part Number:WS248-PN58
Product Reviews:

Availability:

In Stock
£127.50 (£106.25 Ex VAT)
↓ How to find? Spring Chart ↓
Unit Quantity: Each
Description

Garador Mk3c spring box unit to suit Garador Mk3c, S/S, 'C'-type and Mk2 doors (manufactured pre-1999).

Suitable for doors manufactured by Westland Engineering, Catnic and Garador garage doors.

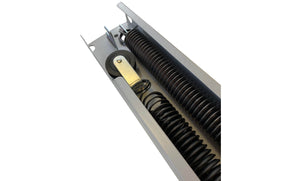

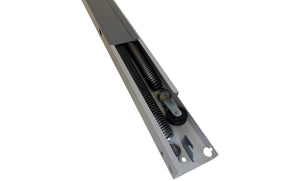

The spring box is supplied with two pre-tensioned springs, for easy installation, replacement support cables, latch keep bracket and fixing screws. The box is manufactured to the original Garador specifications, and includes a sliding plastic cover for easy access.

The springbox comes with 3 pre-cut holes on the underside of the box to suit doors with both single and two-point locking. For doors with two-point locking, an additional latch support bracket can be purchased.

How to identify the required spring number: Check existing springs for coloured bands of paint around the spring. If the existing spring is too greasy or rusty to make out any markings, measure the door opening size (width x height), make a note of your door design (this is often referenced on the label on the back of the door) and check against the spring chart further down the page.

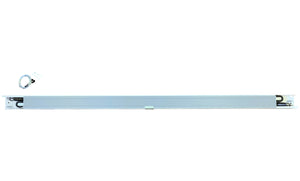

Box contents:

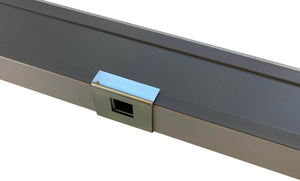

  • Metal spring box complete with sliding plastic spring cover
  • Two springs (pre-tensioned)
  • Two replacement cables
  • Latch keep support bracket
  • Two fixing screws
  • Fittings instructions (for more info on fitting the spring box please see the fitting instructions tab)

To help you work out the spring box number you require please see our spring finder table.
Fitting Instructions

Click the PDF icon to open the printable fitting instructions for Garador Mk3c garage door spring box.

Garador MK3C Springbox fitting instructions

Specification
Spring Length NA
Spring Diameter NA
No. of Coils NA
Spring Wire Diameter NA
Used on Door Type Single width
Delivery & Returns

Delivery Costs

Delivery Service

Weight Cost Delivery Timescale
Economy Delivery
(UK mainland only)
0 - 200g £1.99 2-3 working days delivery via Royal Mail 48 (Untracked).
200g - 2kg £3.49

Standard Delivery
(UK mainland only)

< 200g £2.99 1 - 2 working days via Royal Mail 24 (untracked)
200g - 2kg £4.99
2k - 20kg £6.95 1 - 2 working days courier (Tracked)
20kg - 40kg £14.99
40kg - 60kg £19.99
60kg - 250kg £29.99

Express Delivery
(UK mainland only)

0 - 20KG £9.99 Next working day Courier (Tracked). Delivery Monday-Friday. Available for most items. Orders placed before 2pm.
20kg - 40kg £19.99
40kg - 60kg £29.99

Returns Policy

To return an unwanted order, please contact us within 14 days of receipt of delivery. Full returns information can be found here.

Steel Doors

Door size (W x H)

Georgian/Elite

Georgian

Beaumont/Elite

Beaumont/Elite

Cathedral/Elite

Cathedral/Elite

Carlton/Elite

Carlton/Elite

Salisbury/Elite

Salisbury/Elite

Horizon/Elite

Horizon/Elite

Chevron/Elite

Chevron/Elite

Parade White/Brown

Parade White/Brown

6'6" x 6'3" - - - PN58 - PN58 - -
6'6" x 6'6" PN167 - - PN58 - PN58 PN167 PN167
6'6" x 7'0" PN167 - - PN58 - PN58 PN167 -
7'0" x 6'3" - - - N/A - - - -
7'0" x 6'6" PN57/1 PN55/2 PN55/2 PN58 PN55/2 PN58 PN57/1 PN57/1
7'0" x 7'0" PN150 PN155 PN155 PN55/2 PN155 PN57/1 PN55/2 PN155
7'3½" x 6'4" - - - PN57/1 - PN56/1 - -
7'5" x 6'3" - - - - - N/A - -
7'5" x 6'6" PN55/2 PN55/2 PN55/2 PN57/1 PN155 PN56/1 PN55/2 PN155
7'5" x 7'0" PN108 - - PN150 PN108 PN55/2 PN155 PN155
7'6" x 6'6" PN55/2 - - PN57/1 PN155 PN57/1 PN55/2 N/A
7'6" x 7'0" N/A PN155 PN155 N/A N/A N/A N/A N/A
7'8½" x 6'3" - - - N/A - N/A - -
7'8½" x 6'6" PN150 - - PN55/2 - PN155 PN55/2 -
7'8½" x 7'0" N/A - - PN155 - PN55/2 PN155 -
8'0" x 6'3" - - - N/A - N/A - -
8'0" x 6'6" PN150 - - PN55/2 PN150 PN115 - -
8'0" x 7'0" PN108 - - PN155 PN155 PN150 - PN155
8'2½" x 6'3" - - - N/A - N/A - PN108
8'2½" x 6'6" - - - PN150 - PN55/2 - -
8'2½" x 7'0" - - - PN155 - PN155 - -

Fibreglass Doors

Door size (W x H)

Stamford

Stamford

Arden (White)

Arden

Kenmore (Brown)

Kenmore

Derwent

Derwent

Swinton

Swinton

Clifton

Clifton

Oakham

Oakham

Woburn

Woburn

7'0" x 6'6" N/A PN55/2 PN55/2 N/A PN55/2 PN55/2 PN55/2 N/A
7'0" x 7'0" N/A PN55/2 PN55/2 N/A PN55/2 PN55/2 PN55/2 N/A
7'5" x 6'6" N/A PN155 PN155 N/A PN155 PN155 PN155 N/A
7'5" x 7'0" N/A PN155 PN155 N/A PN155 PN155 PN155 N/A

Timber Doors

Door size (W x H)

Chevron Cedar

Chevron Cedar

Vertical Cedar

Vertical Cedar

Sandhurst

Sandhurst

Cavendish

Cavendish

Wolsey

Wolsey

Seymour

Seymour

Tudor

Tudor

Horizontal Cedar

Horiztonal Cedar

7'0" x 6'6" PN57/1 PN57/1 - - PN55/2 PN55/2 PN55/2 PN57/1
7'0" x 7'0" PN55/2 PN55/2 PN55/2 PN55/2 PN155 PN155 PN155 PN55/2
7'5" x 6'6" PN55/2 PN57/1 PN55/2 PN55/2 PN55/2 PN55/2 PN55/2 PN57/1
7'5" x 7'0" PN55/2 PN150 PN55/2 PN55/2 PN155 PN155 PN155 PN150
7'6" x 6'6" PN55/2 PN55/2 PN55/2 PN55/2 PN55/2 PN55/2 PN55/2 -
7'6" x 7'0" - PN55/2 - - PN55/2 PN55/2 PN55/2 -
