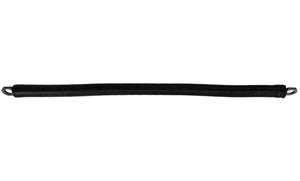

Garador R/FR Garage Door Spring
Part Number:WS246-901
Product Reviews:
Availability:
In Stock
£79.50
(£66.25 Ex VAT)
Description
Garador garage door springs to suit R or FR single doors. These springs are also a suitable replacement spring for Garador Mk3R doors.
A Garador R / FR garage door has one spring on each side of the door.
Please note: The original MK3R springs are now obsolete. R type springs are used instead. The substitute springs are a little longer than the originals, so to allow for this you should rotate/lower the bottom spring bracket and then re-fix it.
Please see spring table to determine spring number required. Alternatively, the spring number is often engraved on one end of the spring.
It is always recommended to replace springs in pairs, so that the door remains balanced.
Please note: If replacing only one spring, our standard product warranty does not apply. Please see terms and conditions for more information.
A Garador R / FR garage door has one spring on each side of the door.
Please note: The original MK3R springs are now obsolete. R type springs are used instead. The substitute springs are a little longer than the originals, so to allow for this you should rotate/lower the bottom spring bracket and then re-fix it.
Please see spring table to determine spring number required. Alternatively, the spring number is often engraved on one end of the spring.
It is always recommended to replace springs in pairs, so that the door remains balanced.
Please note: If replacing only one spring, our standard product warranty does not apply. Please see terms and conditions for more information.

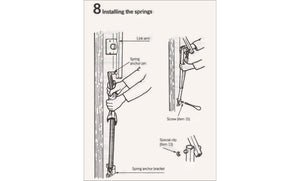

Fitting Instructions
Click the PDF icon to open the printable fitting instructions for Garador R/FR Garage Door Spring.
- Raise the door into the open position, and secure the door to prevent the door from closing.
- Place the eye of the spring over the hook of the bottom spring anchor bracket.
- Using a cloth, or gloves, to protect your hands, grip the spring firmly and pull the spring up and hook the top eye over the spring anchor pin on the link arm, and locate the spring into the groove.
- With the slotted end pointing down, clip the lower spring cover tube over the spring and lower downwards locating over the anchor bracket.
- With the slotted end at the top, clip the spring cover tube around the spring, then locate into the anchor pin on the link arm.
- Secure in place with the circlip on the end of the spring anchor pin.
- Finally, repeat the procedure for any additional springs, and ensure the door is operating correctly.
Specification
Spring Length | 595 mm |
Spring Diameter | 28 mm |
No. of Coils | 182 |
Spring Wire Diameter | NA |
Used on Door Type | Single width |
Delivery & Returns
Delivery Costs
Delivery Service |
Weight | Cost | Delivery Timescale |
---|---|---|---|
Economy Delivery (UK mainland only) |
0 - 200g | £1.99 | 2-3 working days delivery via Royal Mail 48 (Untracked). |
200g - 2kg | £3.49 | ||
Standard Delivery |
< 200g | £2.99 | 1 - 2 working days via Royal Mail 24 (untracked) |
200g - 2kg | £4.99 | ||
2k - 20kg | £6.95 | 1 - 2 working days courier (Tracked) | |
20kg - 40kg | £14.99 | ||
40kg - 60kg | £19.99 | ||
60kg - 250kg | £29.99 | ||
Express Delivery |
0 - 20KG | £9.99 | Next working day Courier (Tracked). Delivery Monday-Friday. Available for most items. Orders placed before 2pm. |
20kg - 40kg | £19.99 | ||
40kg - 60kg | £29.99 |
Returns Policy
To return an unwanted order, please contact us within 14 days of receipt of delivery. Full returns information can be found here.




Steel Doors
Door size (W x H) |
Georgian/Elite |
Beaumont/Elite |
Cathedral/Elite |
Carlton/Elite |
Salisbury/Elite |
Horizon/Elite |
Chevron/Elite |
Parade White/Brown |
---|---|---|---|---|---|---|---|---|
6'6" x 6'3" | - | - | - | N/A | - | N/A | - | - |
6'6" x 6'6" | 108-901 | - | - | 108-925 | - | 108-923 | 108-923 | - |
6'6" x 7'0" | 108-925 | - | - | 108-927 | - | 108-925 | 108-905 | - |
7'0" x 6'3" | - | - | - | N/A | - | N/A | - | - |
7'0" x 6'6" | 108-903 | 108-901 | 108-901 | 108-925 | 108-903 | 108-923 | 108-927 | 108-901 |
7'0" x 7'0" | 108-905 | 108-903 | 108-903 | 108-901 | 108-907 | 108-927 | 108-903 | 108-903 |
7'3½" x 6'4" | - | - | - | N/A | - | N/A | - | - |
7'5" x 6'3" | - | - | - | N/A | - | N/A | - | - |
7'5" x 6'6" | 108-903 | 108-903 | 108-903 | 108-927 | 108-911 | 108-925 | 108-925 | 108-903 |
7'5" x 7'0" | 108-907 | 108-905 | 108-905 | 108-907 | 108-907 | 108-901 | 108-901 | 108-905 |
7'6" x 6'6" | 108-907 | 108-903 | 108-903 | 108-903 | 108-907 | 108-925 | 108-907 | 108-903 |
7'6" x 7'0" | 108-911 | 108-905 | 108-905 | 108-907 | 108-907 | 108-901 | 108-911 | 108-903 |
7'8½" x 6'3" | - | - | - | N/A | - | N/A | - | - |
7'8½" x 6'6¾" | 108-911 | 108-907 | 108-907 | 108-903 | - | 108-901 | 108-903 | - |
7'8½" x 6'11¾" | 108-913 | 108-911 | 108-911 | 108-903 | - | 108-903 | 108-907 | - |
8'0" x 6'3" | - | - | - | N/A | - | N/A | - | - |
8'0" x 6'6" | 108-911 | 108-907 | 108-907 | 108-903 | 108-907 | 108-901 | - | 108-907 |
8'0" x 7'0" | 108-913 | 108-911 | 108-911 | 108-909 | 108-911 | 108-903 | - | 108-911 |
8'2½" x 6'3" | - | - | - | N/A | - | N/A | - | - |
8'2½" x 6'6¾" | - | - | - | - | - | - | - | 108-907 |
8'2½" x 6'11¾" | - | - | - | - | - | - | - | 108-911 |
Fibreglass Doors
Door size (W x H) |
Stamford |
Arden (White) |
Kenmore (Brown) |
Derwent |
Swinton |
Clifton |
Oakham |
Woburn |
---|---|---|---|---|---|---|---|---|
7'0" x 6'6" | 108-907 | 108-907 | 108-907 | 108-907 | 108-907 | 108-907 | 108-907 | - |
7'0" x 7'0" | 108-907 | 108-907 | 108-907 | 108-907 | 108-907 | 108-907 | 108-907 | - |
7'5" x 6'6" | 108-907 | 108-907 | 108-907 | 108-907 | 108-907 | 108-907 | 108-907 | - |
7'5" x 7'0" | 108-907 | 108-907 | 108-907 | 108-907 | 108-907 | 108-907 | 108-907 | - |
Timber Doors
Door size (W x H) |
Chevron Cedar |
Vertical Cedar |
Sandhurst |
Cavendish |
Wolsey |
Seymour |
Tudor |
Horizontal Cedar |
---|---|---|---|---|---|---|---|---|
7'0" x 6'6" | 108-901 | 108-923 | - | - | 108-903 | 108-903 | 108-903 | N/A |
7'0" x 7'0" | 108-903 | 108-923 | 108-907 | 108-907 | 108-903 | 108-903 | 108-903 | N/A |
7'5" x 6'6" | 108-903 | 108-925 | 108-903 | 108-903 | 108-903 | 108-903 | 108-903 | N/A |
7'5" x 7'0" | 108-907 | 108-901 | 108-907 | 108-907 | 108-907 | 108-907 | 108-907 | N/A |
7'6" x 6'6" | 108-903 | 108-901 | 108-903 | 108-903 | 108-903 | 108-903 | 108-903 | N/A |
7'6" x 7'0" | 108-903 | 108-901 | - | - | 108-907 | 108-907 | 108-907 | N/A |
